Automatic Transfer Switch (ATS) Panel

ATS panels – power supply without interruptions!

In industrial, medical, transport, educational and many other sectors, stable power supply to equipment is critically important. Even the smallest problems in such cases cause serious consequences, so you cannot do without ATS panels, which ensure timely switching of power to backup sources and back. The devices are manufactured by LK-Energy. The process is monitored at every stage, and the finished products undergo thorough inspection and testing.

ATS panel: purpose and functionality

The devices are reliable mechanisms that automatically connect backup equipment and restore power supply when voltage appears at the main source. These functions are triggered in several cases:

• failure of the main equipment;
• loss of phases;
• troubleshooting on the main power supply equipment;
• phase sequence violation;
• emergency short circuits.

In each of these situations, ATS panels are triggered instantly and connect power to the equipment, ensuring system stability. In addition, the devices are used for monitoring and controlling equipment operation.

Their main advantage is minimising downtime and losses. This allows an enterprise to avoid serious financial losses in unforeseen situations related to emergency outages.

Description of ATS panels

LK-Energy produces reliable and functional automatic transfer switch panels that meet established requirements. Let us look at the characteristics in more detail.

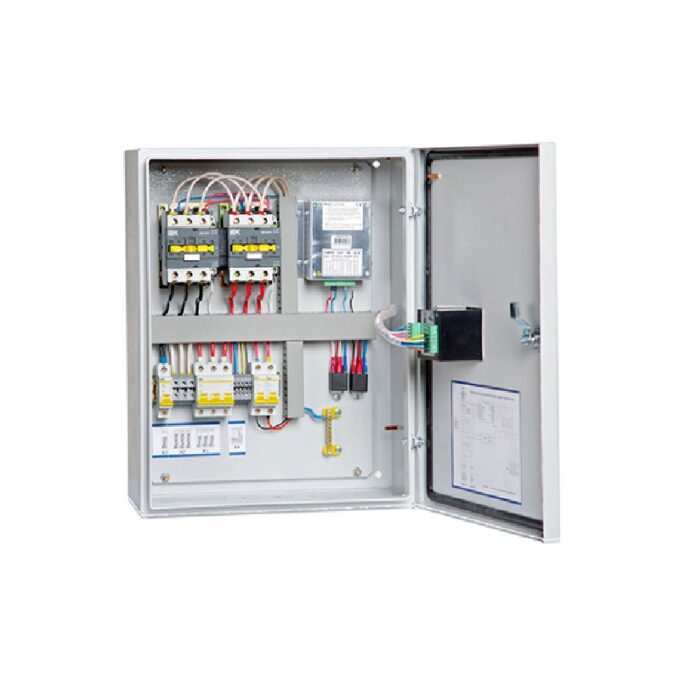

Design and components

The basis of ATS panels is the enclosure. It is made of galvanised steel with a coating thickness of z = 275 g/m2 and protects the internal components. Inside there is a control panel. It houses buttons and other elements that ensure control of the mechanism.

In addition to the panel, the enclosure contains protective parts, contactors, relays, measuring instruments and circuit breakers. Together, these components provide automatic switching and protect the system from overloads and other emergency situations.

Diagram

Technical specifications

The ATS panels manufactured by the company are distinguished by the following characteristics:

• Rated current: 25 A, 200 A, 125 A, 100 A, 250 A and other ratings.
• Protection rating: to IP31, IP54 standard
• Rated voltage: 380 V
• Material: galvanised steel with a coating thickness of z=275 g/m2 (enclosure)

Safety

Devices from the manufacturer LK-Energy are safe to use. This is reflected in two main aspects.

Strength

This characteristic is ensured by the use of materials resistant to mechanical impact and moisture. The enclosure is fully metal. It withstands impacts, pressure, and attempts to bend the frame. In addition, it protects against unauthorised access.

Reliability

During the manufacturing process, the technicians strictly ensure that the finished product meets the established requirements. All wires are securely insulated, the control panel bears the necessary markings, and the switches are triggered instantly.

Manufacturing time of the automatic transfer switch panel

You can order the required ATS panel model to your organisation’s requirements right after a consultation with a manager. On average, the lead time for manufacturing electrical switchboard equipment is 2 weeks.

Warranty

A warranty applies to devices purchased from our company. The warranty period depends on the part. We provide a 12-month warranty on components and a 25-year warranty on the galvanised enclosure.

Delivery methods

We ship devices to customers in various ways. We arrange delivery via our own logistics service and offer customers self-pickup. Products are delivered both within Ukraine and abroad. In the latter case, parcels can be sent by carriers or as part of a consolidated load.

For whom did we manufacture and install ATS panels?

During its time on the market, our company has been able to help many enterprises and institutions. In 2023 alone we worked with four large organisations that were satisfied with the equipment. Among them:

City Clinical Infectious Diseases Hospital (dairy kitchen). We delivered the devices via our own logistics service.

Children’s City Hospital No. 3 in Odesa. We delivered the devices to the customer ourselves.

City Clinical Infectious Diseases Hospital in Odesa (departments 12 and 10). Our delivery service handled the transport.

The company’s technicians also manufactured ATS panels for the Hospital in the city of Mykolaiv. The finished products were collected by self-pickup.
