KTPn
Outdoor-installation packaged transformer substations (KTPn) of the dead-end type, with a rating of up to 250 kVA for a voltage of 6 (10) kV, are intended for receiving, converting and distributing electrical energy of three-phase alternating current at a frequency of 50 Hz at a rated voltage of 6 (10)/0.4 kV.
The field of application of the KTPn is the power supply systems of urban, industrial and agricultural facilities, as well as construction sites and other economic facilities in regions with a temperate climate.

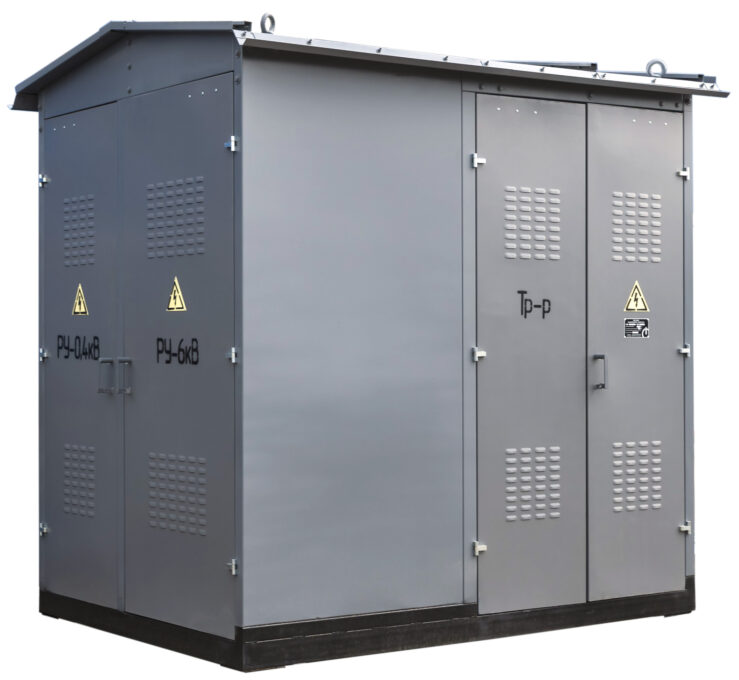

KTPn are supplied fully assembled in a housing made of galvanised steel sheet with a built-in power transformer and high-voltage (HV) and low-voltage (LV) panels. On a separate order, a metering cabinet and a street-lighting panel are installed in the KTPn.

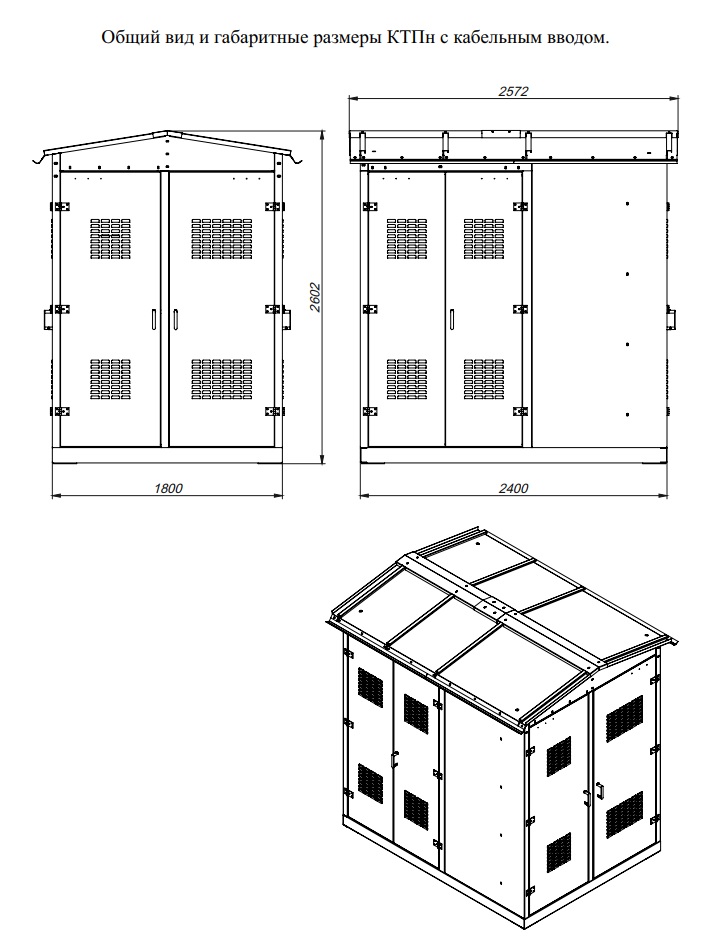

The KTPn is a riveted frame structure made of galvanised steel sheets.

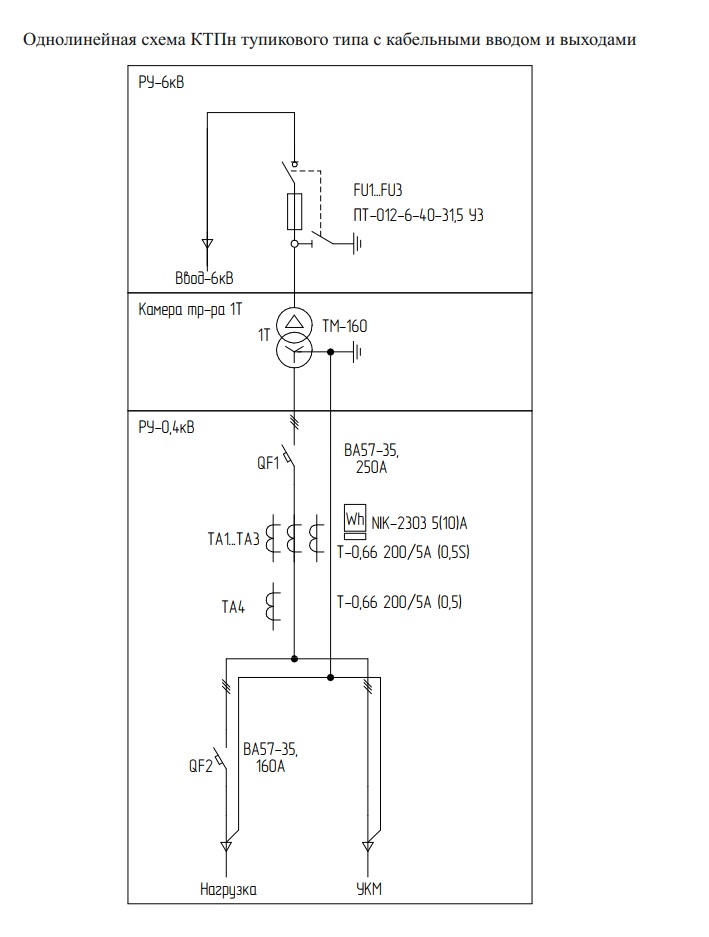

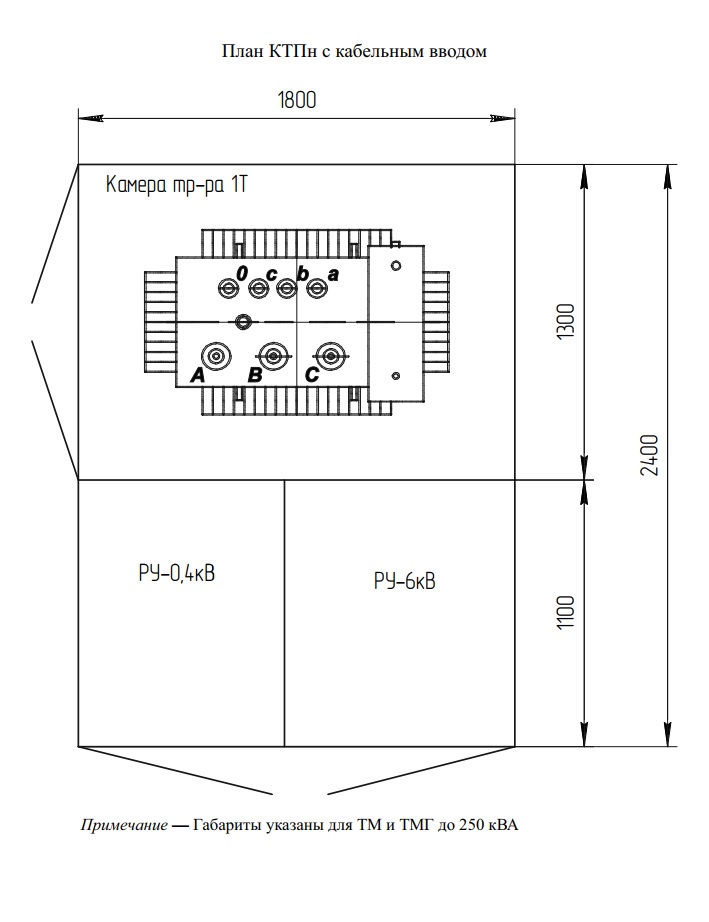

The substation is divided into three compartments:
- the HV compartment (switchgear 6(10) kV);
- the power transformer compartment;
- the LV compartment (switchgear 0.4 kV).
The HV-side input/output is overhead or cable.
The LV-side outputs are cable.
The KTPn can be manufactured with the switching devices arranged on a frame in the low-voltage switchgear compartment, which saves substation footprint.
The KTPn is mounted on a foundation.
Climatic version U1 per GOST 15150-69.
KTPn comply with DSTU 3399-96.
Recommended rated currents of fuse links for protection of power transformers 6/0.4 and 10/0.4
| Rated power of the power transformer, kVA | Rated current (Irated, A) | |||||
|---|---|---|---|---|---|---|
| Transformer on the side | Fuse on the side | |||||
| 0.4 kV | 6 kV | 10 kV | 0.4 kV | 6 kV | 10 kV | |
| 160 | 231 | 15.4 | 9.25 | 250 | 31.5 | 20 |
| 250 | 360 | 24 | 14.4 | 400 | 50 | 40 (31.5) |
| 400 | 580 | 38.3 | 23.1 | 600 | 80 | 50 |
| 630 | 910 | 60.5 | 36.4 | 1000 | 125 | 80 |
| 1000 | 1445 | 91.6 | 55 | 1600 | 160 | 12.5 |

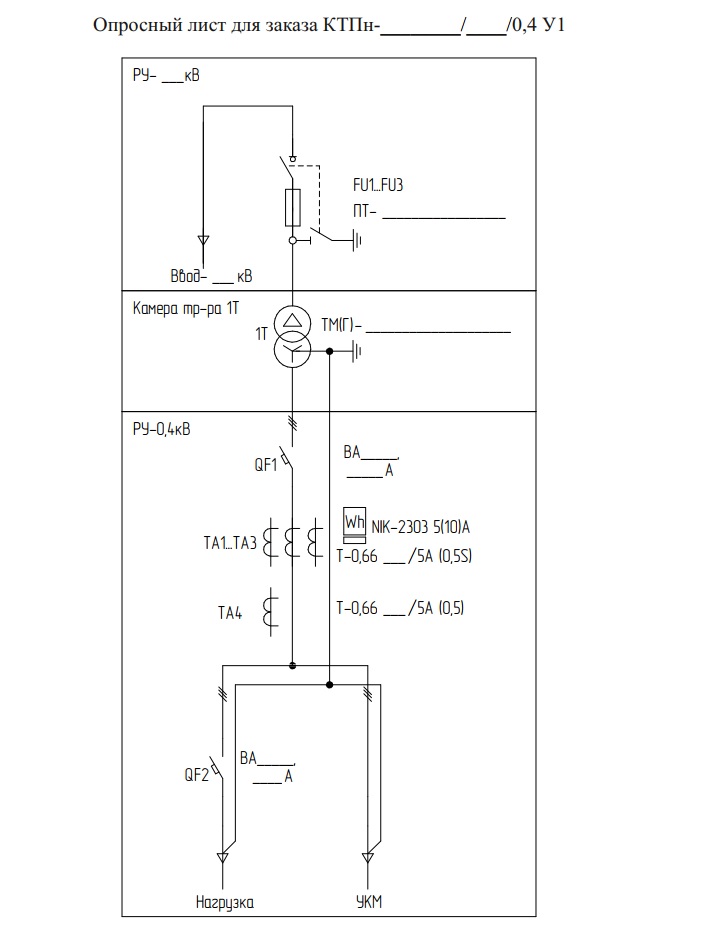

Place an order
